Classification : Sort By Bag
Country: Taiwan
Phone: 886-5-2217005
Fax: 886-5-2211929
Contact Person: Sammuel Chiu
Main Machine
- Hot-cut system - Top and bottom heat-sealing system for strong sealing with high sealing speed
- Synchonized cut & sealing - Maintaining constant sealing and cutting position
- Upgrade to swing type sealing system - Swing type sealing knife with film feeding to extend sealing time without stopping material feeding increase production efficiency and higher output
- “SICK” photocell - Reliable and accurate photocell registration with long service life
- LCD control interface - Touch screen interface for easy parameter and production monitoring
- Malfunction alarm / stop - Abnormal temperature / no material feed / photocell tracking miss
- Optional swing-type sealing system (RTSWFA-VR)
Rewinding Systems
- Fully automatic highspeed rewinding system - Non-stop automatic roll change by bag counts
- Available in 1 line or 2 lines systems
- Semi-automatic rewinding system - Economic rewinding system requires labour to insert paper core or change coreless winding

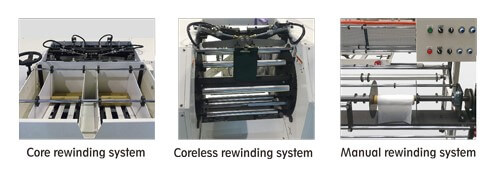

- Core rewinding system
- Coreless rewinding system
- Manual rewinding system

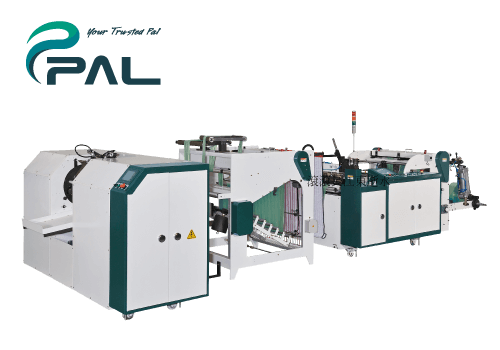

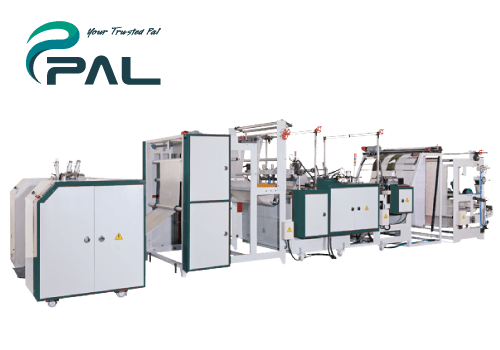

Fully Automatic Flat Bag On Roll Making Machine
BFWFA-V / BFWFA-V-2

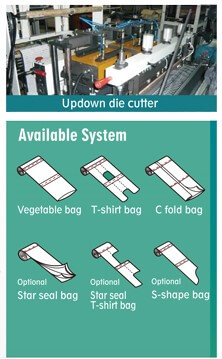

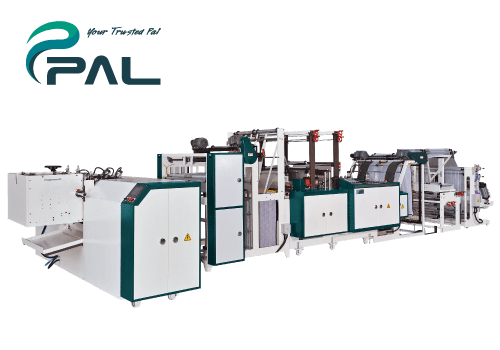

Fully Automatic T-shirt Bag On Roll Making Machine + Up Down Die System
BFWDFA-V
Optional Device
- Optional starseal T-shirt handle sealing device
- Optional starseal T-shirt bag waste film removal device

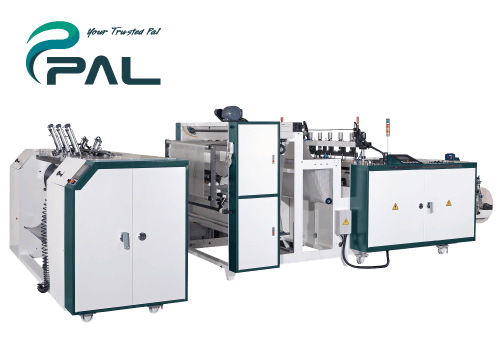

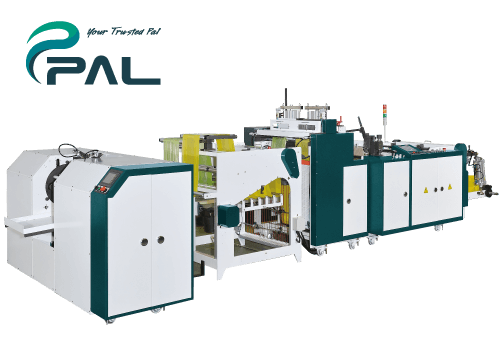

Fully Automatic T-shirt Bag On Roll Making Machine + Rotary Die System
BFWDFA-VR / BFWSFA-VR

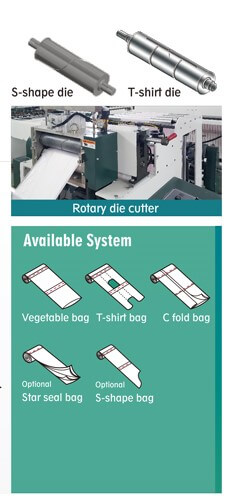

Rotary Die Cut System
- Servo driven - High response speed & faster line speed
- Clean cut - Seamless cutting creates perfect cuts without any weak tear point
- Long service life - Non-contact with accurate manufacturing and strong hardness blade
- Vacuum waste removal - Cut out waste from T-shirt bags will be removed while cutting by vacuum suction and collected into waste bin
One Time Film Blown & One Time Printing
- High production efficiency by blowing up one jumbo film roll instead of several small rolls.
- Large film roll, after printed, could supply for multiple lines production
- Benefit: Greatly reduce labor cost, production time and energy consumption.

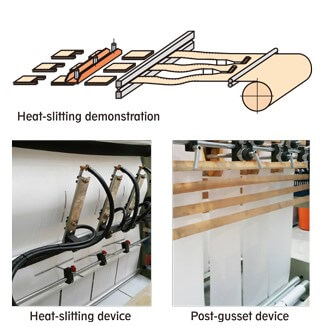

Heat-slitting & Post-gusset System
- Heat-slitting - Heated semi-circular knife slit and seal the edge of passing film
- Post-gusset - Blow up tubic film again and form gusset as film blown machines

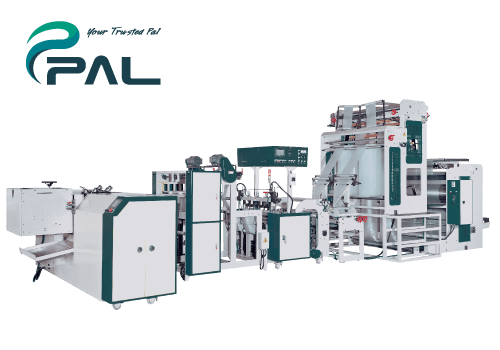

Fully Automatic T-shirt Bag On Roll Machine Heatslitting & Post-gusset System BFWDFA-V+SLG2
Optional Device
- Optional starseal T-shirt handle sealing device
- Optional starseal T-shirt bag waste film removal device
Automatic Jumbo Film Vegetable Bag On Roll Machine + Multi-line Heat-slitting (cored)
BFWFA-V+SL4 / 5 / 6
- Servo motor - Acuracy and highspeed @ 80 M/min or 180 pcs/min

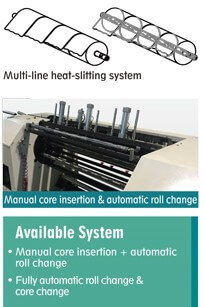

- Heat slitting device - Available for 4 / 5 / 6 lines productions
- Semi-automatic roll change system - Manually loading paper cores on airshaft + automatic roll change
Automatic Flat Bag On Roll Making Machine Big Core Rewinding System BFWFA-V+BC
Big core system - 300 mm max finished diameter, other sizes on demand. For heavy duty industrial packaging & agriculture & furniature & carpet. Usually over 1M width & length for transportation and access while working. Replace manual labour collection on sheet by sheet system

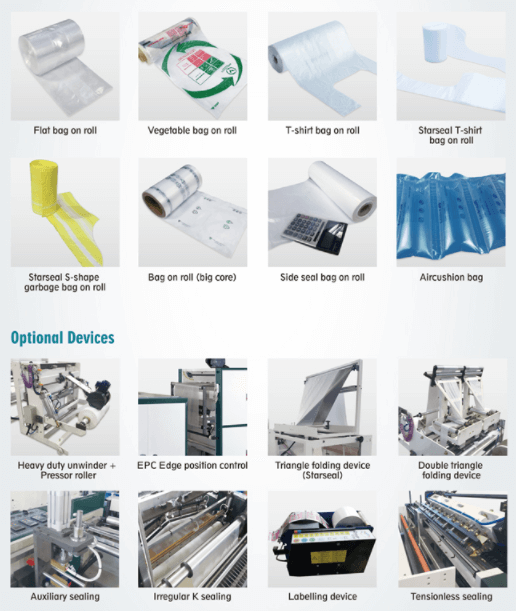

Bag on rolls or perforated rollstock are widely accepted for its compact volume and convenience. Different types of bags are used widely in different countries, mainly for supermarkets, consumer product packaging and garbage bags.
Model | Bag length (inch) | Bag width (inch) | Cutting speed (strokes/min) | Film thickness (mm) | Tolerance (mm) | Power (kw) | Machine dimension L x W x H (cm) |
Semi-automatic T-shirt Bag On Roll Making Machine | |||||||
20BWD-V | 10-30 | 6-18 | 30-120 | 0.01-0.15 | ±1 | 3.0 | 410 x 135 x 165 |
24BWD-V | 10-30 | 6-22 | 30-120 | 0.01-0.15 | ±1 | 3.0 | 410 x 145 x 165 |
28BWD-V | 10-30 | 6-26 | 30-120 | 0.01-0.15 | ±1 | 3.5 | 410 x 150 x 165 |
32BWD-V | 10-30 | 6-30 | 30-120 | 0.01-0.15 | ±1 | 4.0 | 465 x 175 x 185 |
42BWD-V | 10-30 | 6-40 | 30-120 | 0.01-0.15 | ±1 | 5.0 | 490 x 190 x 185 |
Fully Automatic Flat Bag On Roll Making Machine | |||||||
32BFWFA-V | 3-45 | 3-30 | 30-120 | 0.01-0.25 | ±1 | 6.5 | 650 x 180 x 190 |
42BFWFA-V | 3-45 | 3-40 | 30-120 | 0.01-0.25 | ±1 | 7.0 | 650 x 210 x 190 |
32BFWFA-V-2 | 3-60 | 3-14 x 2 | 30-120 | 0.01-0.25 | ±1 | 7.0 | 650 x 180 x 190 |
42BFWFA-V-2 | 3-60 | 3-19 x 2 | 30-120 | 0.01-0.25 | ±1 | 7.5 | 650 x 210 x 190 |
Fully Automatic Flat Bag On Roll Making Machine & Heat-slitting & Post gusset System | |||||||
32BFWFA-V+SLG2 | 6-60 | 6-13 x 2 | 30-120 | 0.008-0.15 | ±1 | 7.0 | 940 x 340 x 290 |
42BFWFA-V+SLG2 | 6-60 | 6-19 x 2 | 30-120 | 0.008-0.15 | ±1 | 7.5 | 940 x 380 x 290 |
Fully Automatic T-shirt Bag On Roll Making Machine, Up Down Die System | |||||||
32BFWDFA-V | 10-45 | 44864 | 30-120 | 0.008-0.15 | ±1 | 5.5 | 750 x 180 x 190 |
42BFWDFA-V | 10-45 | 10-40 | 30-120 | 0.008-0.15 | ±1 | 6.0 | 750 x 210 x 190 |
32BFWDFA-V-2 | 10-45 | 6-12 x 2 | 30-120 | 0.008-0.15 | ±1 | 6.5 | 750 x 180 x 190 |
42BFWDFA-V-2 | 10-45 | 6-16 x 2 | 30-120 | 0.008-0.15 | ±1 | 7 | 750 x 210 x 190 |
Fully Automatic T-shirt Bag On Roll Making Machine + Heat-slitting & Post gusset System | |||||||
32BFWDFA-V+SLG2 | 10-45 | 6-12 x 2 | 30-120 | 0.008-0.15 | ±1 | 7.0 | 940 x 340 x 290 |
42BFWDFA-V+SLG2 | 10-45 | 6-16 x 2 | 30-120 | 0.008-0.15 | ±1 | 7.5 | 940 x 340 x 290 |
Fully Automatic T-shirt Bag On Roll Making Machine, Rotary Die System | |||||||
32BFWSFA-VR | 10-60 | 20-30 | 30-120 | 0.008-0.15 | ±1 | 5.5 | 700 x 300 x 220 |
42BFWSFA-VR | 10-60 | 20-40 | 30-120 | 0.008-0.15 | ±1 | 6 | 700 x 300 x 220 |
32BFWSFA-VR-2 | 10-60 | 10 x 2 | 30-120 | 0.008-0.15 | ±1 | 6.0 | 700 x 300 x 220 |
42BFWSFA-VR-2 | 10-60 | 13 x 2 | 30-120 | 0.008-0.15 | ±1 | 6.5 | 700 x 300 x 220 |
Semi-automatic Jumbo Film Vegetable Bag On Roll Making Machine + Multi-line Heat Slitting System | |||||||
42BFWFA-V+SL4 | 44681 | 10 x 4 | 30-150 | 0.008-0.15 | ±1 | 6.5 | 570 x 300 x 200 |
50BFWFA-V+SL4 | 44681 | 12 x 4 | 30-150 | 0.008-0.15 | ±1 | 7.0 | 570 x 350 x 200 |
42BFWFA-V+SL5 | 44681 | 8 x 5 | 30-150 | 0.008-0.15 | ±1 | 6.5 | 570 x 300 x 200 |
50BFWFA-V+SL5 | 44681 | 9 x 5 | 30-150 | 0.008-0.15 | ±1 | 7.0 | 570 x 350 x 200 |
42BFWFA-V+SL6 | 44681 | 6 x 6 | 30-150 | 0.008-0.15 | ±1 | 7.0 | 570 x 300 x 200 |
50BFWFA-V+SL6 | 44681 | 8 x 6 | 30-150 | 0.008-0.15 | ±1 | 7.5 | 570 x 350 x 200 |
Automatic Flat Bag On Roll Making Machine Big Core Rewinding System | |||||||
PL42BFWFA-V+BC | 6-75 | 10-40 | 30-110 | 0.008-0.15 | ±1 | 7.0 | 750 x 260 x 200 |
PL50BFWFA-V+BC | 6-75 | 10-48 | 30-90 | 0.008-0.15 | ±1 | 8.5 | 750 x 280 x 200 |
PL65BFWFA-V+BC | 6-75 | 10-60 | 30-70 | 0.008-0.15 | ±1 | 9.5 | 750 x 320 x 200 |
Swing-type S-shape Garbage Bag On Roll Making Machine, Rotary Die System | |||||||
42RTSWFA-VR | 10-120 | 12-40 | 200 stroke or 150M/min | 0.012-0.15 | ±1 | 21 | 820 x 240 x 200 |
50RTSWFA-VR | 10-120 | 12-48 | 200Stroke or 150M/min | 0.012-0.15 | ±1 | 25 | 820 x 280 x 200 |
