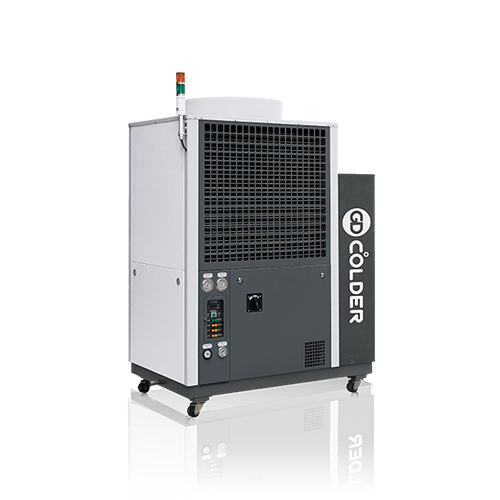

Classification : Air Cooled Series
Country: Taiwan
Phone: 886-6-6530678
Fax: 886-6-6529053
Contact Person: Reiko Huang
- High inductive electronic temperature control switch, and water pump, easy control the manu-facturing process liquid temperature(accuracy ± 0.5°C)
- With Euro-well-known brand compressor, low noise, high E.E.R
- No need cooling water tower.
- Stainless steel plank type heat exchanger. Significantly promote the cooling efficiency, can save 20% energy.
- The cold storage trough can store surplus energy according to the demand.
- Microprocessor control panel and breakdown indication lamp.
- Multiple security protected device, postponed and automatic return home circulated function.
- Have dual-temperature system for choice.
- With open-type stainless steel water tank, easy to clean and maintain.
- Can set water supply by manual or automatic method.
- With perfect anti-shock device and feet wheel design, easy to move.
- The plastic hollow molding/plastics runner film roller cooling.
- Plastic injection and punching molding cooling.
- All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
- Laser cutting & marking machine.
- Semiconductor and electron Instruments, ultrasonic cleaning equipment.
- All kind of machine processes liquid cooling.
Model | AT-60A | AT-90A | |
Temp. range | 5~40°C(Indoor ) | 5~40°C(Indoor ) | |
Humidity range | 40~80% | 40~80% | |
Power | 3P –220/380V –50/60Hz | 3P –220/380V –50/60Hz | |
Coolant | R22/R407 | R22/R407 | |
Cooling liquid | Water | Water | |
Export temp | 8~30°C ± 1°C | 8~30°C ± 1°C | |
Cooling capacity | Kcal-h | 12,000/15,000 | 18,000/22,500 |
50/60Hz | BTU-h | 48,000/60,000 | 72,000/90,000 |
kw | 14/17 | 21/26 | |
Water flow | L/min | 75 | 100 |
Water pressure | Kg | 2 | 2 |
Water piping | High pressure rubber tube, Stainless steel piping | High pressure rubber tube, Stainless steel piping | |
Protection system | No fuse magnetic switch, water level, against/lack phase, ultra-temp, overload protection | No fuse magnetic switch, water level, against/lack phase, ultra-temp, overload protection | |
Compressor | Kw | 3.5 | 5.5 |
Cold-water inlet/outlet | 1" | 1" | |
Remote control | AC220V、DC 24V | AC220V、DC 24V | |
Color | Blue+White | Blue+White | |
Dimension LxWxH | mm | 1,320x810x1,820 | 1,320x810x1,820 |
Water tank | L | 210 | 210 |
Weight | kg | 265 | 350 |
We reserve the right that modification designs and technique parameter change and will not notice specially.
