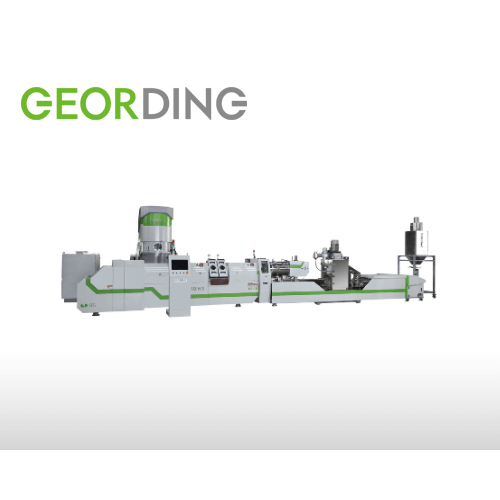

Integrates Shredding, Extruding and Palletizing into
- Smash and mix well, heat, dry.
- High productivity, low noise.
- Easy operation and low labor cost.
- Suitable for film, bags, bottle scraps, etc
Model |
GD-85-3IN1 |
GD-100-3IN1 |
GD-120-3IN1 |
GD-150-3IN1 |
GD-175-3IN1 |
Shredder |
|||||
Conveyor |
1HP*4000(L)*400(W) |
2HP*6000(L)*600(W) |
2HP*6000(L)*800(W) |
2HP*6000(L)*800(W) |
2HP*6000(L)*800(W) |
Size |
Ø760 mm |
Ø1000 mm |
Ø1000~1500 mm |
Ø1000~1800 mm |
Ø1000~2000 mm |
Motor |
40HP |
75HP |
100HP |
150HP |
150HP |
Main Extruder |
|||||
Screw Diameter L/D Ratio |
32 |
36 |
36 |
36 |
36 |
Main Power |
50~75HP |
125~150HP |
150~200HP |
200~350HP |
250~600HP |
Temp. Control |
7 zone |
8 zone |
9 zone |
9 zone |
11 zone |
Heating Capacity |
36KW |
40KW |
60KW |
115KW |
140KW |
Hydraulic Power |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
Max. Outpou/Hr |
120~280kg |
300~500kg |
400~800kg |
800~1500kg |
1000~1800kg |
Die Face Cutter |
|||||
Power |
2HP |
3HP |
3HP |
5HP |
7.5HP |
Separator |
|||||
Power |
10HP |
10HP |
10HP |
15HP |
20HP |
Vibration Motor |
|||||
Motor |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/2HP*2 |
Blower |
|||||
Power |
5HP |
5HP |
7.5HP |
7.5HP |
10HP |
Storage Barrel |
|||||
Capacity |
1000L |
1000L |
1000L |
1000L |
1000L |

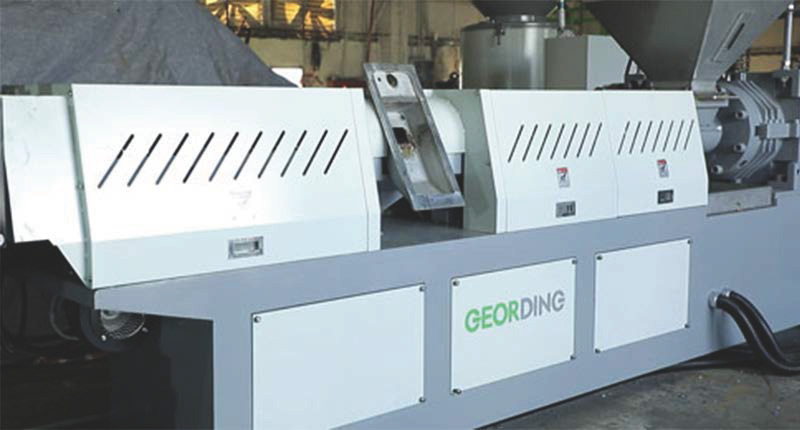

The main extruder provides the best feeding, mixing, ventilation, heating and capacity as it is designed way based on customer's raw material, capacity, and compounding degree.

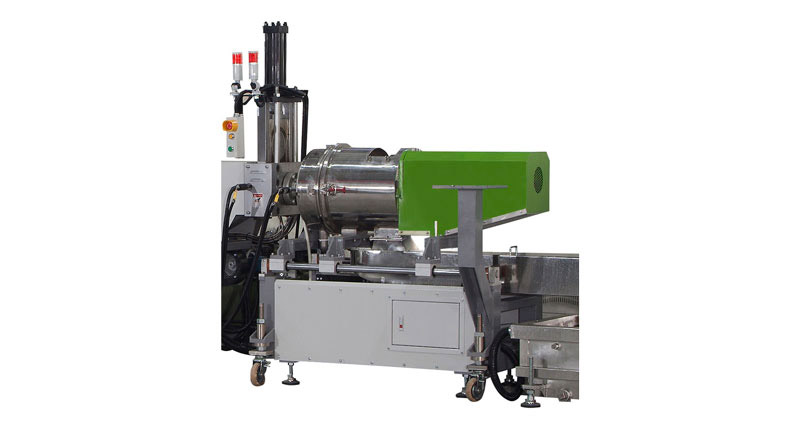

Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automatically patent design. THe knife and die plate always set at 90 degree. No need to adjust frequently.

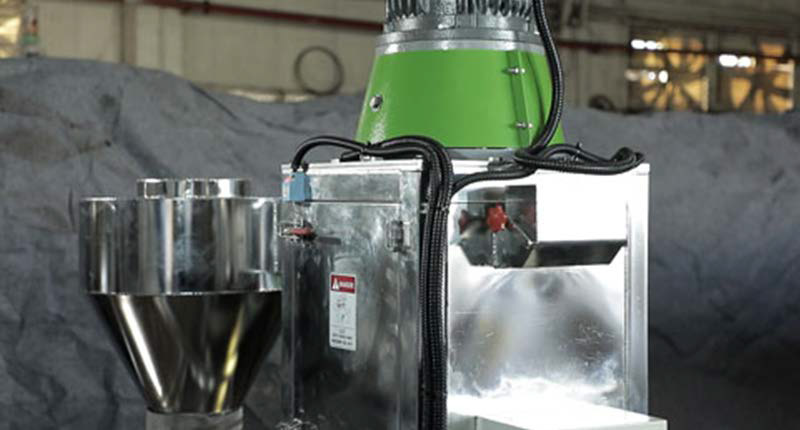

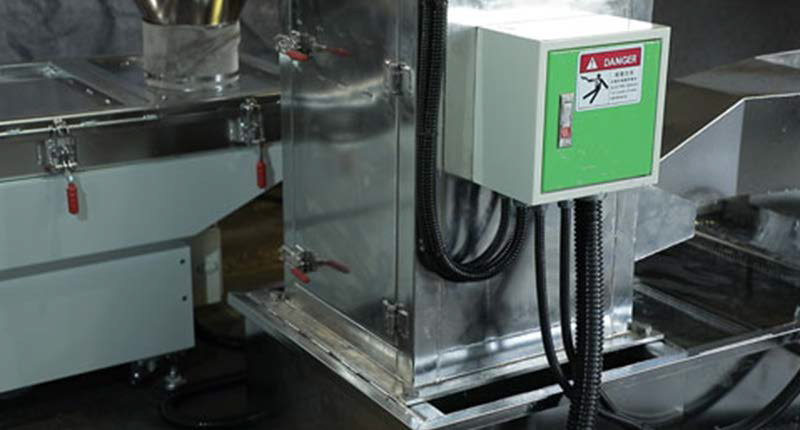

High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.
The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.

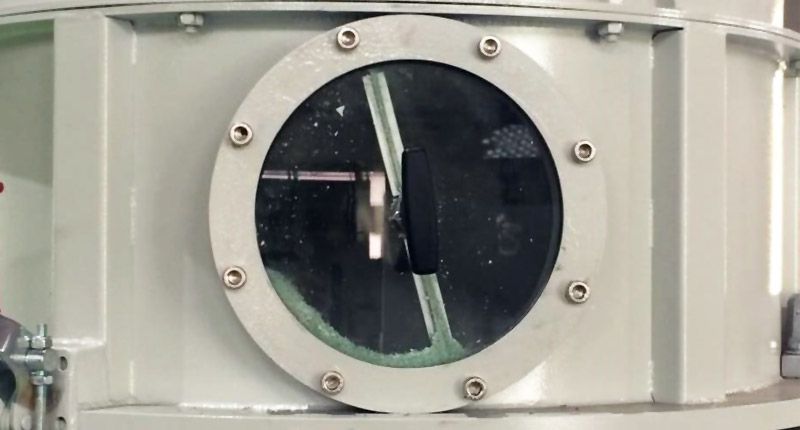

Shredder sight window with window wiper help operator to observe at anytime.

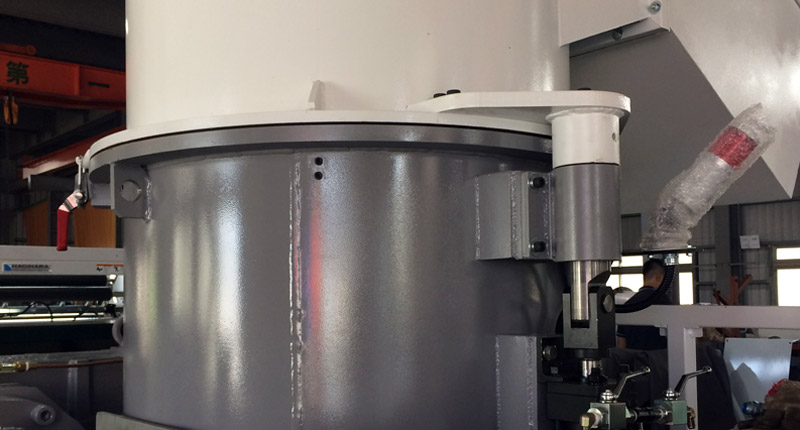

Manual open device for shredder tank when it comes power cut.

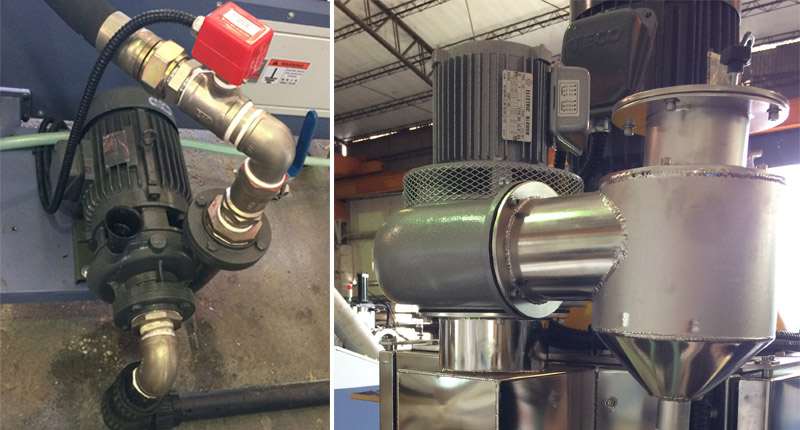

Water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer.
The cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener.

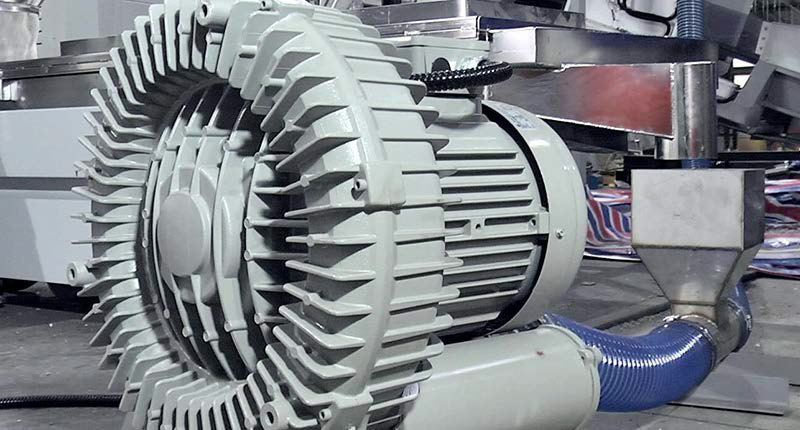

Blower with noiseless design.
